OIL BATH METAL GEAR
To protect and provide lubrication for clutches and gears

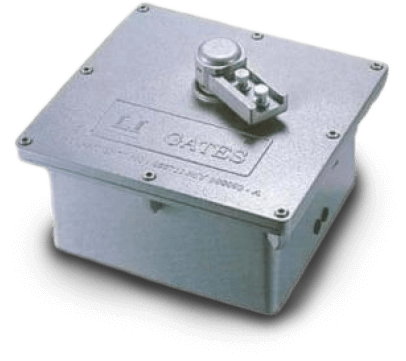

UNDERGROUND TYPE SWING
AUTO GATE SYSTEM
Durably constructed, unobtrusive and quietly operated,
offering another elegant solution for swinging gate system.
Solid and Long Lasting
SOLID STRONGHOLD MOTOR
ALUMINIUM ALLOY
CONSTRUCTION
Protects underground-concealed motor by being waterproof,
weatherproof and free from acid erosion
POWER BACK-UP SYSTEM
Optional power backup for your gate system should
the main power cut off
UNOBSTRUSIVE DESIGN
Unobstrusive design as the gate system functions while it is operated underground
QUIET
As it is concealed underground, the noise from the motor is reduced
Eco Save
ECO SAVE
ECO SAVE
Designed with DC (direct current) automatic-based system, which saves up to
90% of your electricity usage.
2 Speed Control Panel
2 SPEED CONTROL PANEL
2 SPEED CONTROL PANEL (High-Amp Power)
Allowing 2 speed (Fast-Slow) for the gate
and power leaking prevention (if the gate overheats, the control board will cut off power)
Built-in safety clutch
SAFETY CLUTCH
BUILT-IN SAFETY CLUTCH
When the gate comes in contact with physical object ie. human while
opening/closing, the gate will immediately stop moving.

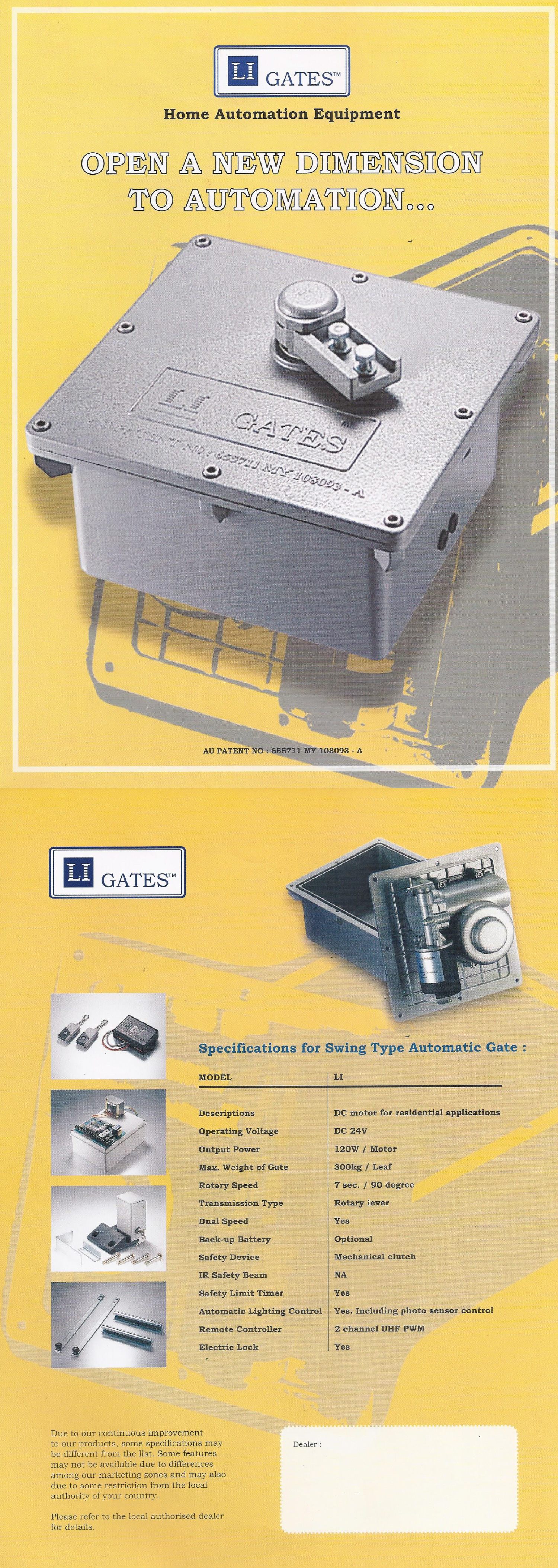

SPECIFICATIONS
Controller
1+2 Remote
Control Board
2-Speed
Max. Output Power
120W per Motor
Gate Weight
Max 300kg per leaf
Rotary Speed
7 second per 90° C (approx)
Transmission Type
Rotary level
Speed
Dual Speed
Backup Battery
12V 7AH
DC motor
3 stage planetary gear
Operating
DC24v
Safety Clutch
Mechanical Clutch
Safety Beam
IR Safety Beam
Safety
Safety Limit Timer
Automatic Lightning Control
Including photo sensor control
Remote Controller
2 channel UHF PWM
Lock
Electric Lock
