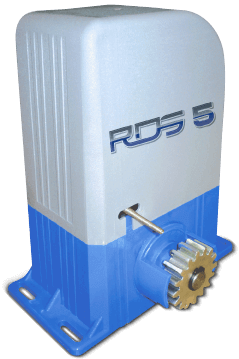

ELECTRIC SLIDING AUTOGATE SYSTEM


Equipped with high quality stainless steel materials and Oil Bath lubrication
technology hence providing a reliable, efficient and safe solution for sliding gates
Solid and Long Lasting

HIGH QUALITY STAINLESS STEEL

ABS PLASTIC
TECHNOLOGY

ABC plastic is flame retardant and has good resistance to acid and heat; protecting and preserving longevity of the innards.

ABS plastic is a technology that makes the plastic unique Excellent impact resistance Good machinability Excellent aesthetic qualities Good strength and stiffness.

OIL BATH METAL GEAR

To protect and provide lubrication for clutches and gears

DC MOTORS

It comes with power back-up system to allow gates to function
up to 48 hours even when power trip occurs.

DURABLE

With Italian Technology and other quality attributes, it is
powerful, reliable, safe and flood-resistant.

HEAT-PROOF

Heat-proof grease are specially applied on DC mini motors to prevent motors from overheating. With Oil Bath Technology, it acts as lubrication, rust protection and increase lifespan of inner parts of the motor.

Eco Save
ECO SAVE


ECO SAVE

Designed with DC (direct current) automatic-based system, which saves up to
90% of your electricity usage.

Speed Control
SPEED CONTROL

3 SPEED CONTROL PANEL

Designed with 3-Speed concept (Slow-Fast-Slow) & power leaking prevention.

Safety Reverse
SAFETY REVERSE

SAFETY REVERSE

When the gate comes in contact with physical object ie. human while
opening/closing, the gate will immediately stop moving.

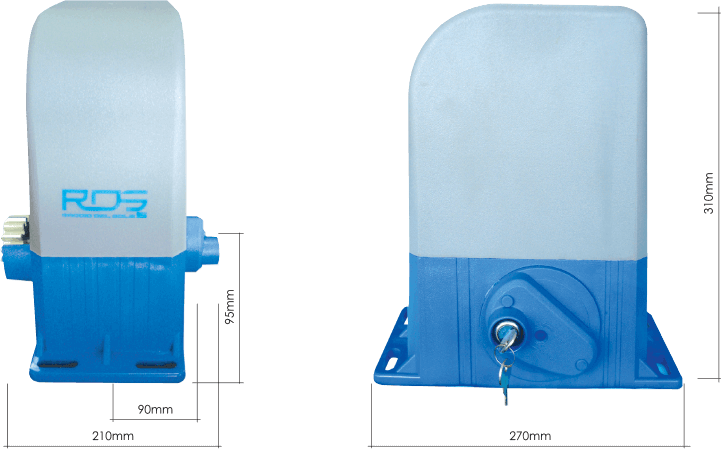

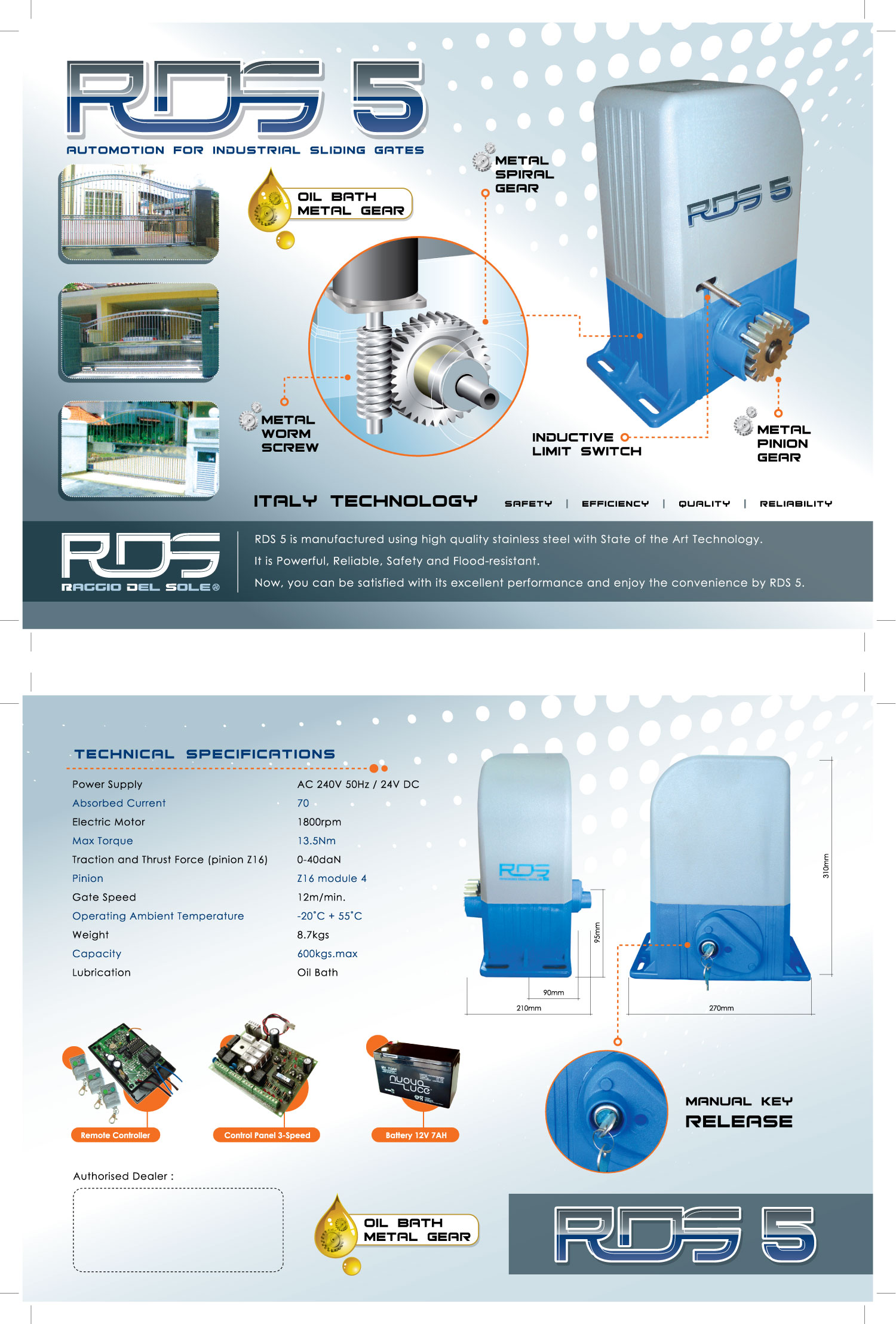

SPECIFICATIONS

Country
Italy technology enhancement
Gate size (support)
Size 18" - 20"
Manual key
release
Controller
1+3 Remote
3-Speed Control Board
Big Control Board
Battery
12V 7AH
Back-up system
Up to 48 hours
Backup Battery
12V 7AH
Electric Motor
1800 rpm
Max Torque
13.5Nm
Pinion
Z16 module 4
Gate Speed
12m/min
Operating Ambient Temperature
-20° C to + 55° C
Weight
8.7kgs
Capacity
600kgs.max
Gate type
MTraction and Thurst Force
0-40daN
Operating
DC & AC Motor
Lubrication
Oil Bath
