POWDER COATING TECHNOLOGY
Powder coating technology prevents possible rusting and maintaining the look of the prodcut to prevent counterfit replacements.
ARM TYPE SWING AUTO GATE SYSTEM
Reliable, efficient and safe solution for swing & folding gates.
Solid and Long Lasting

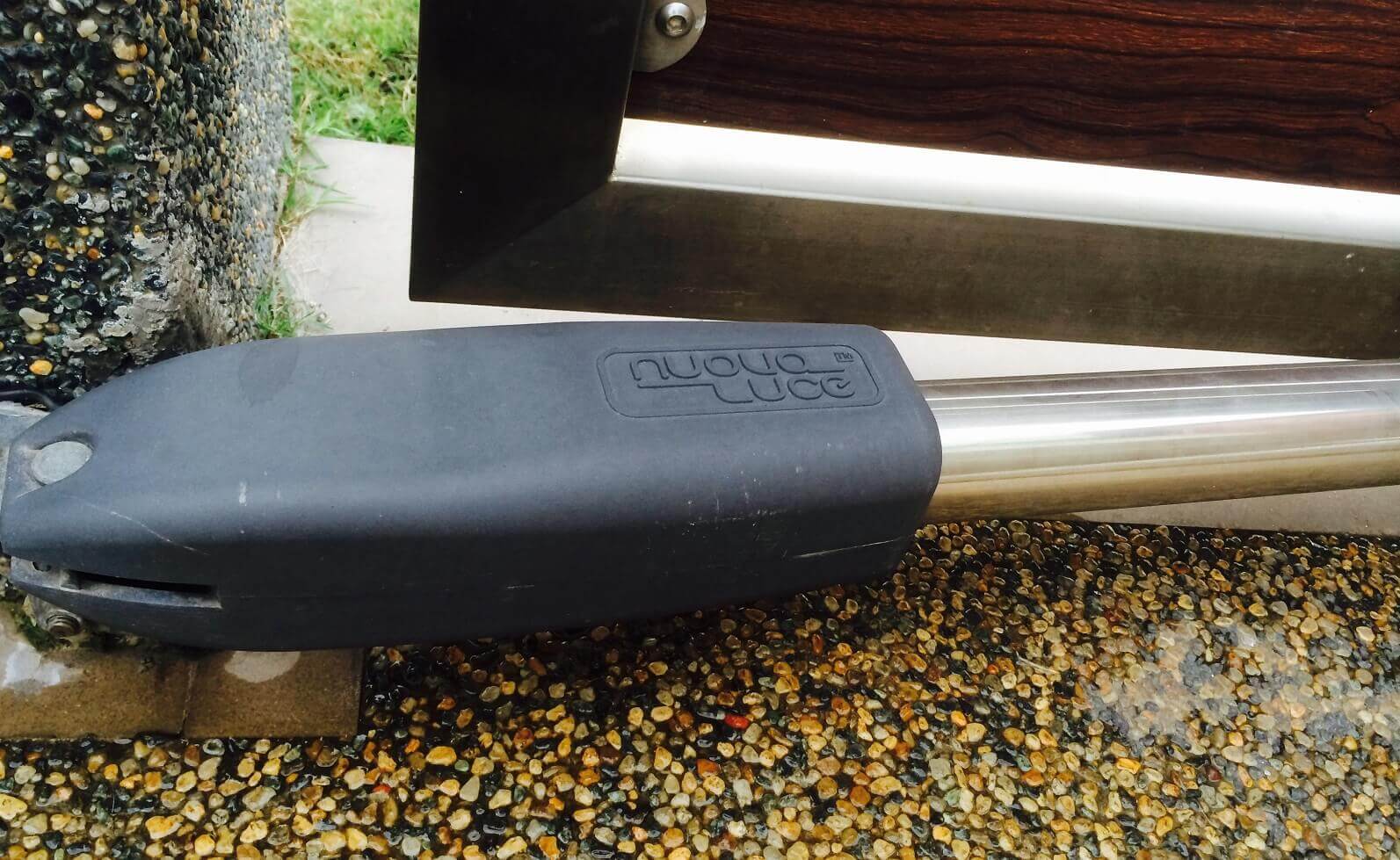

3-STAGE PLANETARY MOTOR
ITALIAN
TECHNOLOGY
The gears of the 3-stage planetary motor are built with black steel, operated with 12-14 small, strong gears. These premium materials increase lifespan & durablity of the motor system. The state-of-the-art system ensures smooth and stable operation for your gate at all times.
Arm actuators are made from aluminium alloy
and hard stainless steel
and hard stainless steel
POWER BACK-UP SYSTEM
Even when power trip occurs, the gate system will still
be functional for up to 48 hours.
STABLE
Nuova Luce are able to protect your motor by strongly holding your gate if the gate faces aggressive shaking.
HEAT-PROOF
With the heat-proof grease specially applied on our DC mini motors, it prevents motors from overheating.
Eco Save
ECO SAVE
ECO SAVE
Designed with DC (direct current) automatic-based system, which saves up to
90% of your electricity usage.
Built-in safety clutch
SAFETY CLUTCH
BUILT-IN SAFETY CLUTCH
When the gate comes in contact with physical object ie. human while
opening/closing, the gate will immediately stop moving.
NUOVA LUCE SIZE
Length of the Motor (not extended)
60 cm
Length of the Motor (fully extend)
91 cm
Support Gate Width (Ft)
<14''
Support for Type of Gates
Folding Gate
Swing Gate

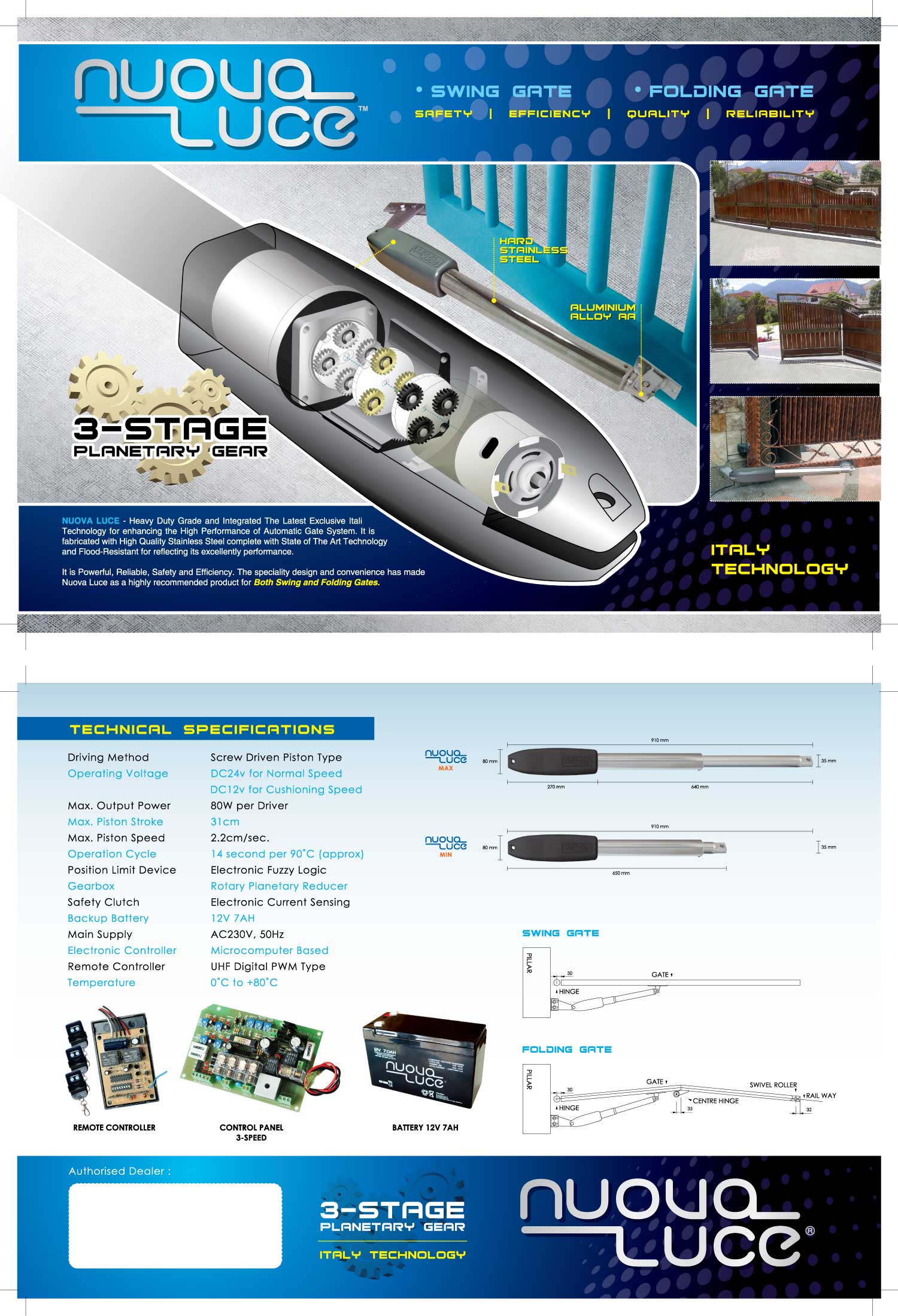

SPECIFICATIONS
Country
Italy technology enhancement
Gate size (one side of the gate)
Size 7"-9" (M) Size 9"-13" (L)
Customized gates suitability
Heavy-profile
DC motor
3 stage planetary gear
Controller
1+3 Remote
3-Speed Control Board
Big Control Board
Battery
12V 7AH
Back-up system
Up to 48 hours
Backup Battery
12V 7AH
Temperature
0° C to + 80° C
Main Supply
AC230V, 50Hz
Driving Method
Screw Driven Piston Type
Operating
DC24v for Normal Speed
DC12v for Cushioning Speed
Max. Output Power
80W per Driver
Piston
Max. Stroke : 31cm
Max. Speed : 2.2cm/sec.
Operation Cycle
14 second per 90° C (approx)
Position Limit Device
Electronic Fuzzy Logic
Gearbox
Rotary Planetary Reducer
Gate type
Safety Clutch
Electronic Current Sensing
Electronic Controller
Microcomputer Based
Remote Controller
UHF Digital PWM Type
